GRIDlink T24 for Open ADR Lighting Control

Jan 2, 2023 | Open ADR Resources, Products-Group

Whether you are participating in Open ADR demand response events or meeting California Title 24 requirements, GRIDlink T24 achieves all requirements in an easy to install package.

GL-6021e-relayVolts-600 GRIDlink T24 for Open ADR Lighting Control

PN: GRIDlinkE-T24-ADR.a  | Open ADR 2.0a
PN: GRIDlinkE-T24-ADR.b | Open ADR 2.0b

Relay-782-2C-Instruction-Lable-r0 GRIDlink T24 for Open ADR Lighting Control

Features

  • Open ADR 2.0a/b certified
  • Relay Contact Output
  • Adjustable 0-10VDC output
  • Cost effective – saves time and money
  • Simple to install – DIN rail or surface mount
  • No special training required
  • Test locally with a manual Test Button
  • 5 Ethernet ports for network expansion to BMS
  • Remote test assistance included for demonstration

Single Relay Output

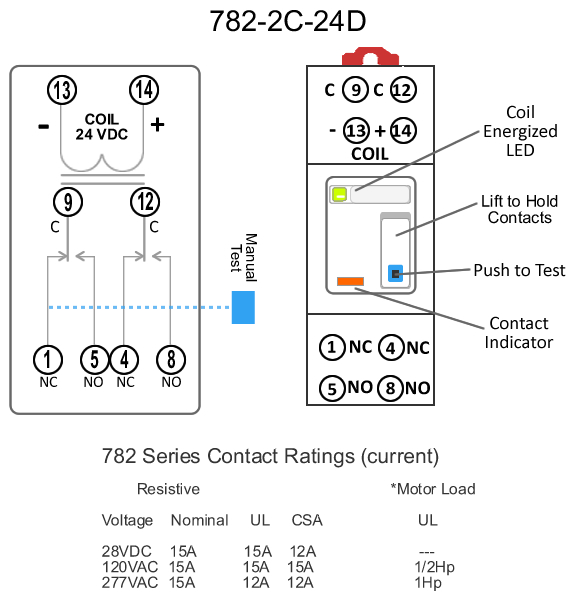

The T-24 comes standard with an external 10A DPDT relay.

Optional 0-10V Output

A potentiometer can be supplied for event curtailment requiring an adjustable voltage output. See the wiring diagram.

GLEA-AA-C-D-1-D GRIDlink T24 for Open ADR Lighting Control

Optional NEMA 4 Enclosure

  • For outdoor environments
  • Ideal for outdoor applications
  • Complete with AC to DC power supply & 15A DPDT relay
